Slicker® MAX Rainscreen
Slicker® MAX is a vertically channeled rainscreen that includes a filter fabric, providing enhanced UV and compression resistance. Slicker MAX is ideal for providing drainage and ventilation behind fiber cement, stone veneer and stucco applications. Slicker 10 MAX was created to comply with new Canadian building codes.
- Patented vertical channels direct bulk water out of the wall assembly
- Unique three-dimensional matrix provides a continuous space for drainage and drying, a thermal break, and pressure equalization
- Fabric blocks mortar droppings from seeping into this newly formed cavity
- Combination of drainage and ventilation allows interior walls to remain dry
- Allows moisture to escape quickly before it damages the sidewall materials
- Protects the wall assembly from the deteriorating effects of mold and rot
- Reduces the chances of premature cracking and deterioration of finishes
- Prevents damage from surfactants by separating the cladding from the water resistive barrier
- Saves time and labor costs by eliminating the need for furring strips

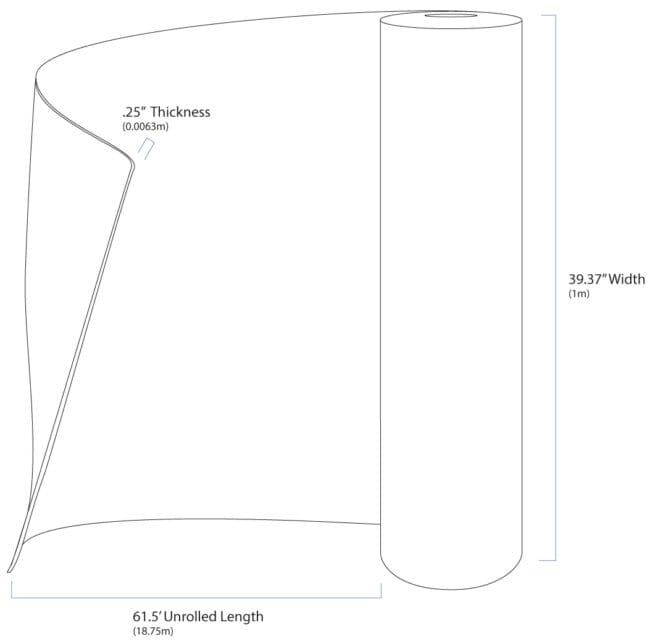

dimensions
Width
39.37 in (1 m)
Length
61.5 ft (14.17 m)
Coverage
200 sq ft (18.58 sq m)
Thickness
1/4 in (6 mm)
Weight
15 lbs per roll
UV Exposure
90 days (max)
Warranty
30 (product) or 35 (system) year limited
Installation Instructions
Videos
Product Literature
Tech Drawings
Wall Options with Rigid Foam CAD
Transition Detail from HydroGap to Slicker MAX CAD
Slicker MAX Wall Corner Detail CAD
Slicker MAX Flanged Window with WRB Installed Before Window CAD
Slicker MAX Non-Flanged Window with WRB Installed Before Window CAD
Slicker MAX Non-Flanged Window with WRB Installed After Window CAD
Slicker MAX Top of Wall Detail CAD
Slicker MAX Bottom of Wall Detail CAD
Slicker MAX Flanged Window with WRB Installed After Window CAD
Slicker MAX General Installation CAD
