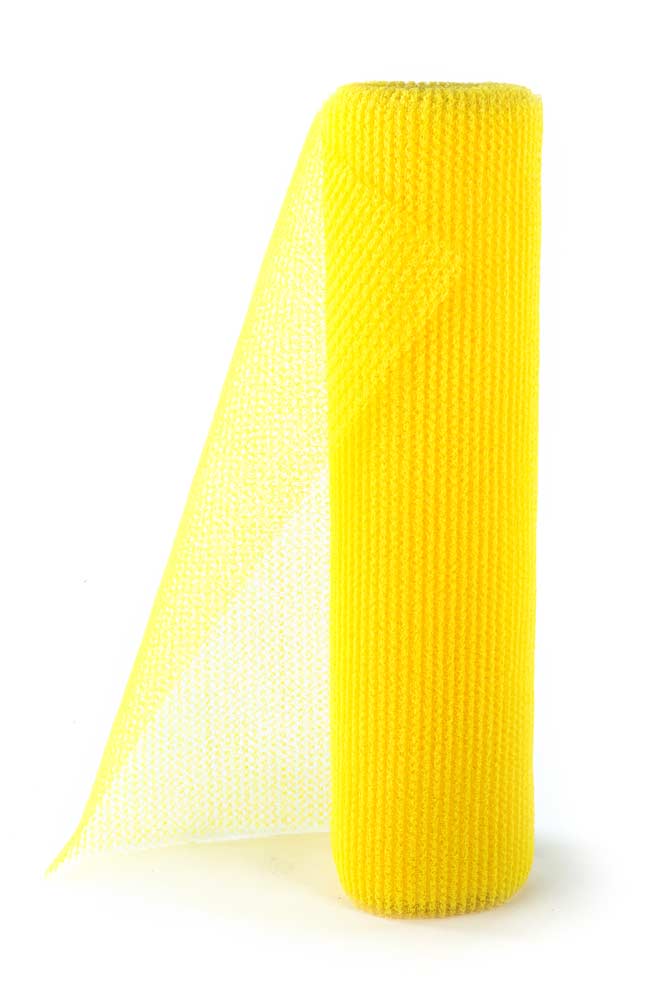

Slicker® Classic Rainscreen
The unique, vertically-channeled, three-dimensional matrix of Slicker® Classic provides a continuous space for drainage and drying, a thermal break and pressure equalization—eliminating the threat of trapped moisture. Slicker 10 Classic is designed to meet the 10mm code requirements in Canada.

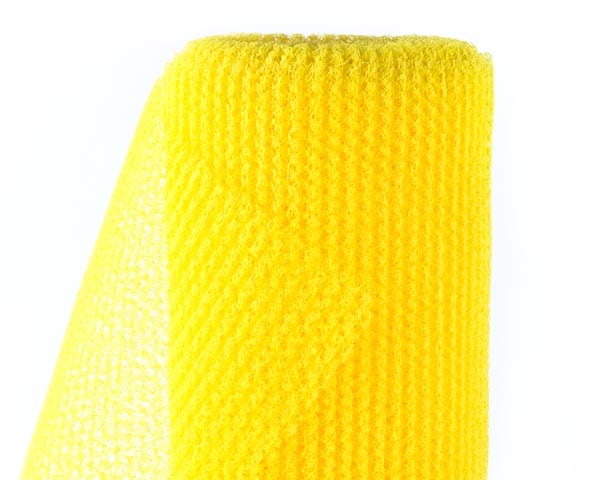

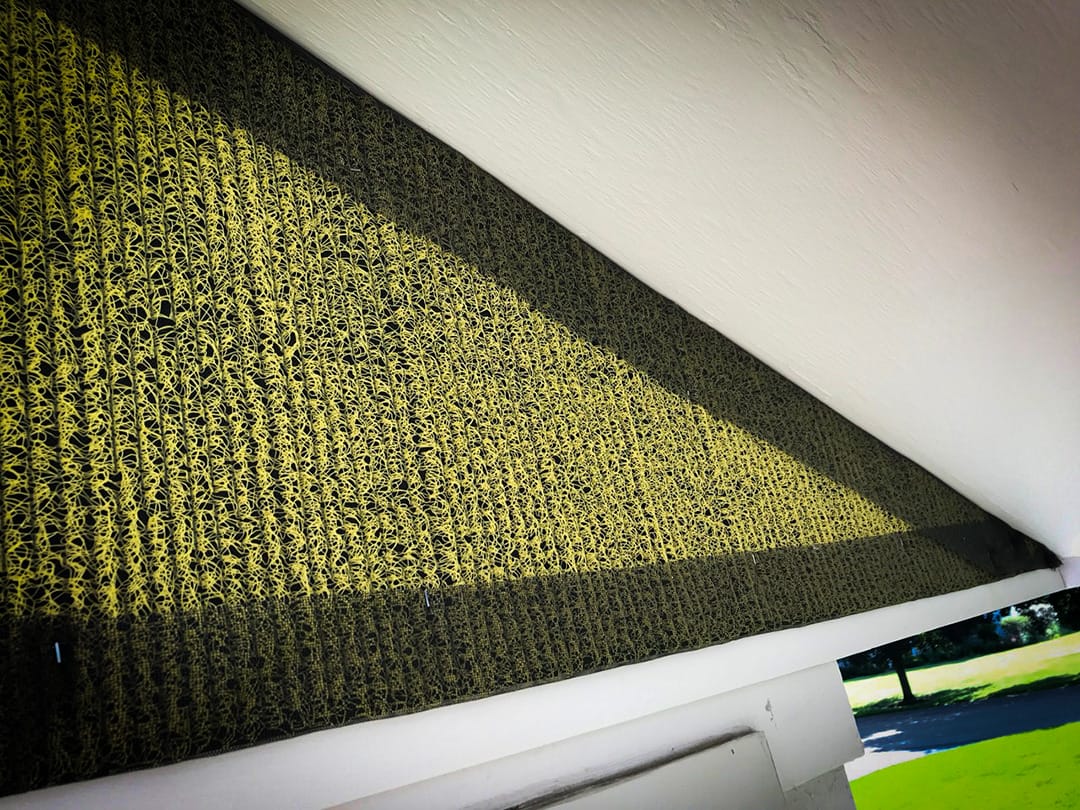

- Patented vertical channels direct bulk water out of the wall assembly
- Unique three-dimensional matrix provides a continuous space for drainage and drying, a thermal break, and pressure equalization
- Recommended for use with wood siding
- 30-day UV exposure
- Slicker 10 Classic meets Canadian 10 mm rainscreen code requirements
- Allows moisture to escape quickly before it damages the sidewall materials
- Protects the wall assembly from the deteriorating effects of mold and rot
- Reduces the chances of premature peeling or blistering of finishes
- Prevents damage from surfactants by separating the cladding from the water resistive barrier
- Saves time and labor costs by eliminating the need for furring strips
Dimensions
Width
39.37 in (1 m)
Length
46.5 ft (14.17 m)
Coverage
150 sq ft (13.94 sq m)
Thickness
1/4 in
Compression & Thickness
0 psf – 0.264” (6,7 mm) 50 psf – 0.247” (6,3 mm) 100 psf – 0.241” (6,1 mm) 150 psf – 0.235” (6 mm)
Weight
7.2 lbs per roll
UV Exposure
30 days (max)
Warranty
30 (product) or 35 (system) year limited
Patents
6,594,965 US, 6,804,922 US and 2,376,583 CAN
Installation Instructions
Videos
Product Literature
Tech Drawings
Slicker Classic Bottom of Wall Detail CAD
Slicker Classic Wall Corner Detail CAD
Slicker Classic Flanged Window with WRB Installed After Window CAD
Slicker Classic Flanged Window with WRB Installed Before Window CAD
Slicker Classic Non-Flanged Window with WRB Installed After Window CAD
Slicker Classic Non-Flanged Window with WRB Installed Before Window CAD
Slicker Classic Top of Wall Detail CAD
Slicker Classic EIFS Installation CAD
Slicker Classic Insulation Board Installation CAD
