Xtractor Vent® X18 Xtra Ridge Vent

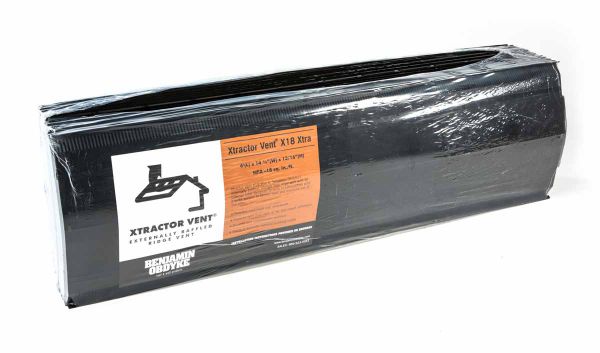

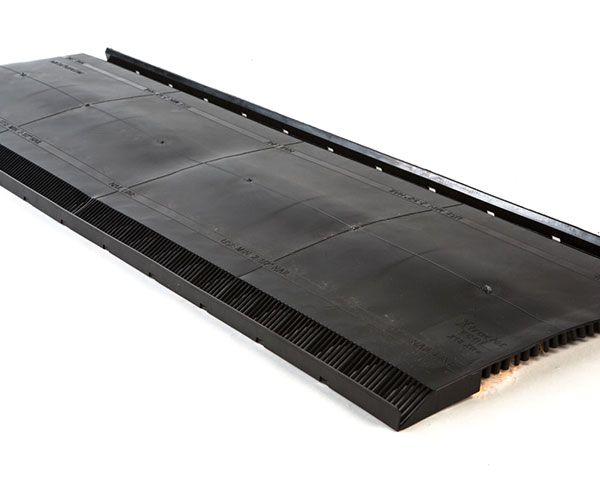

Xtractor Vent® X18 externally baffled, shingle over ridge vent offers maximum roof ventilation – 18 square inches of net free area per linear foot – for ultimate protection from heat and moisture. X18 Xtra combines our already exceptional X18 sectional ridge vent with a filter for extra protection against weather infiltration.

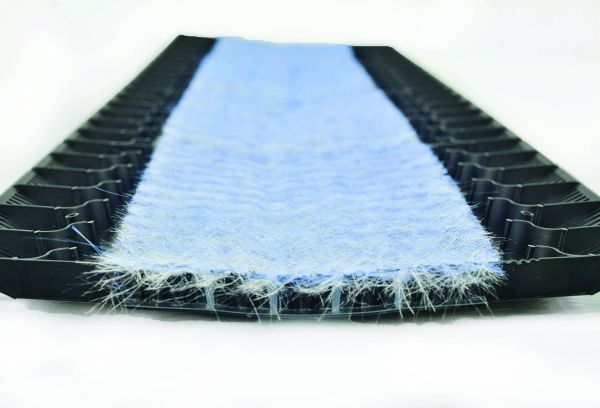

- Internal filter for extra protection against extreme weather
- Integrated end plugs throughout for structural integrity and to reduce scrap
- Pre-drilled nail holes for proper fastening of vent
- Embossed nail lines for correct nail placement and an embossed center line for proper alignment on the ridge
- External and internal baffles prevent wind-driven rain and snow infiltration
- Narrow 1/8 inch wide vent holes
- Compression resistant design
- Maximum ventilation – 18 square inches of net free area per linear foot
- Hot Dipped Galvanized ring shank nails included
Calculate how much you need with our Ridge Vent Calculator
Net Free Area
18 in²/lin ft
Width
14 3/4 in
Length
4 ft sections
Thickness
13/16 in
Patents
6,277,024 US and 2,327,795 CAN
